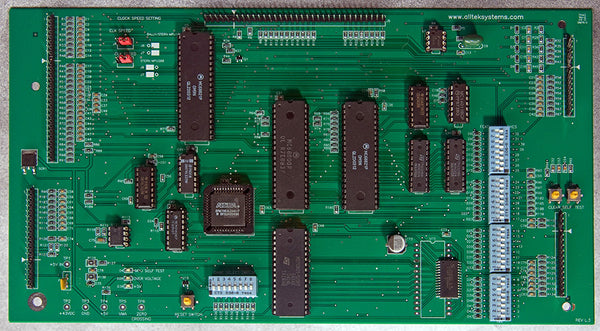

Ultimate MPU Universal Bally/Stern Replacement Board
The Ultimate MPU Universal Bally/Stern Replacement Board is the last computer board you will need in your Bally®/Stern® pinball game. When you replace your old MPU/CPU board, which more than likely has the leaking battery issue, to a new board that uses the latest technology, you will never need to worry about battery damage again. Getting this board is the best thing you can do to extend the life of your pinball machine! We have also built in every game into the memory of this board so you will always be able to swap this board into other pinball games that you have or may get in the future. Our board has over 90 games built into the EPROM. The board also has dozens of great features, such as freeplay for Bally® games, over voltage protection, plug and play installation, and some great troubleshooting extras. Check out all the great features in the list below. This board will make your game run better than ever! Don't wait, order it today.
Don't forget about our amazing bundle deals with our other Ultimate Boards! It's a great way to save money and get your pinball machine up and running again for another 40+ years! Be sure to check out our bundled board sets for additional savings!
Main Features:
- This board is a direct replacement for Bally® AS2518-17, AS2518-35, AS2518-133 and AS-2517-35 and Stern® MPU-100 and MPU-200. You can check our FAQ for all the actual part numbers.
- There are over 90 Bally® and Stern® pinball machine games preprogrammed in the EPROM chip! You can select the game you want using a dipswitch. You can see all the games programmed on our MPU board on the FAQ page.
- Our board is the only one out there that incorporates FREEPLAY mode for all of the Bally games.
- You will never have battery damage again because this board doesn't need any batteries! The on-board memory chip has over 100-year memory retention.
- Our board also has an over-voltage protection circuit. This feature protects your game from voltage spikes that can damage an MPU board. If the Ultimate MPU board sees a voltage spike, it goes into protection mode. When you're ready to reset the circuit, all you have to do is cycle the game off and on.
- We offer an on-board self-test button. It can be frustrating when the self-test button on the front door doesn’t work. With our MPU board you never have to worry about that again.
- The MPU board also has auto-resettable fuse protection included in the over-voltage protection circuit.
- We also include full static protection of all on-board IC's.
- Our board has more test points to help measure voltages and signals than any other board.
- This board has one chip reset which will replace the 16-component reset on your existing board.
- Now you don't have to turn the game off to reset using our on-board reset switch.
- The board also has an on-board memory clear switch.
- To make it even easier to troubleshoot your board, we have included LED voltage indicators.
- There are no jumper changes with our automatic zero-crossing detector circuit.
- This board is totally Plug and Play! With our easy to follow instructions, your pinball machine will be up and running in no time. You can watch the installation video.
- You won't have to do any modifications! Our board will fit on the same mounting rails in your game.
- We have also include an improved, built-in diagnostic program. This provides a burn-in feature and enhanced troubleshooting when using our Ultimate Test Card.
- All components on this board are labeled so that you can easily identify everything.
- All of the IC's are socketed.
- As with all of our Ultimate Board products, we offer a lifetime warranty on this solenoid board. Check out our warranty page for details.
Our Ultimate MPU board is the best on the market and will keep your pinball game running longer than any other. We offer the best support and warranty in the industry and stand behind our products. Don't wait, order today!

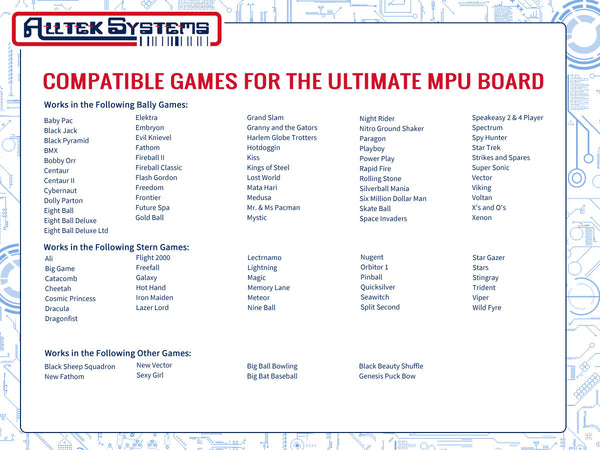

Our Ultimate Boards are compatible with many games. You can see the full list for each board below:
Ultimate MPU Bally/Stern Replacement Board
Works in the Following Bally Games:
Baby Pac | Freedom | Power Play |
Black Jack | Frontier | Rapid Fire |
Black Pyramid | Future Spa | Rolling Stone |
BMX | Gold Ball | Silverball Mania |
Bobby Orr | Grand Slam | Six Million Dollar Man |
Centaur | Granny and the Gators | Skate Ball |
Centaur II | Harlem Globe Trotters | Space Invaders |
Cybernaut | Hotdoggin | Speakeasy 2 & 4 Player |
Dolly Parton | Kiss | Spectrum |
Eight Ball | Kings of Steel | Spy Hunter |
Eight Ball Deluxe | Lost World | Star Trek |
Eight Ball Deluxe Ltd | Mata Hari | Strikes and Spares |
Elektra | Medusa | Super Sonic |
Embryon | Mr. & Mrs. Pacman | Vector |
Evil Knievel | Mystic | Viking |
Fathom | Night Rider | Volton |
Fireball II | Nitro Ground Shaker | X's and O's |
Fireball Classic | Paragon | Xenon |
Flash Gordon | Playboy |
Works in the Following Stern Games:
Ali | Iron Maiden | Quicksilver |
Big Game | Lazer Lord | Seawitch |
Catacomb | Lectrnamo | Split Second |
Cheetah | Lightning | Star Gazer |
Cosmic Princess | Magic | Stars |
Dracula | Memory Lane | Stingray |
Dragonfist | Meteor | Trident |
Flight 2000 | Nine Ball | Viper |
Freefall | Nugent | Wild Fyre |
Galaxy | Orbitor 1 | |
Hot Hand | Pinball |
Works in the Following Other Games:
Black Sheep Squadron | Sexy Girl | Black Beauty Shuffle |
New Fathom | Big Ball Bowling | Genesis Puck Bowler |
New Vector | Big Bat Baseball |
Ultimate Solenoid Driver Board
Works in the Following Bally Games:
Black Jack | Freedom | Rapid Fire |
Black Pyramid | Frontier | Rolling Stone |
BMX | Future Spa | Silverball Mania |
Bobby Orr | Harlem Globe Trotters | Six Million Dollar Man |
Centaur | Hotdoggin | Skate Ball |
Centaur II | Kiss | Space Invaders |
Cybernaut | Kings of Steel | Speakeasy 2 & 4 Player |
Dolly Parton | Lost World | Spectrum |
Eight Ball | Mata Hari | Spy Hunter |
Eight Ball Deluxe | Medusa | Star Trek |
Eight Ball Deluxe Ltd | Mr. & Mrs. Pacman | Strikes and Spares |
Elektra | Mystic | Super Sonic |
Embryon | Night Rider | Vector |
Evil Knievel | Nitro Ground Shaker | Viking |
Fathom | Paragon | Voltan |
Fireball II | Playboy | X's and O's |
Fireball Classic | Power Play | Xenon |
Flash Gordon |
Works in the Following Stern Games:
Ali | Iron Maiden | Pinball |
Big Game | Lazer Lord | Quicksilver |
Catacomb | Lectrnamo | Seawitch |
Cheetah | Lightning | Split Second |
Cosmic Princess | Magic | Star Gazer |
Dracula | Memory Lane | Stars |
Dragonfist | Meteor | Stingray |
Flight 2000 | Nine Ball | Trident |
Freefall | Nugent | Viper |
Galaxy | Orbitor 1 | Wild Fyre |
Hot Hand |
Works in the Following Other Games:
Black Sheep Squadron | New Vector | Sexy Girl |
New Fathom |
Ultimate LED/Lamp Driver Board
Works in the Following Bally Games:
Black Jack | Freedom | Rapid Fire |
Black Pyramid | Frontier | Rolling Stone |
BMX | Future Spa | Silver Ball Mania |
Centaur | Harlem Globe Trotters | Six Million Dollar Man |
Centaur II | Hotdoggin | Skate Ball |
Cybernaut | Kiss | Space Invaders |
Dolly Parton | Kings of Steel | Speakeasy 2 & 4 Player |
Eight Ball | Lost World | Spectrum |
Eight Ball Deluxe | Mata Hari | Spy Hunter |
Eight Ball Deluxe Ltd | Medusa | Star Trek |
Elektra | Mr. and Mrs. Pacman | Strikes and Spares |
Embryon | Mystic | Super Sonic |
Evil Knievel | Night Rider | Vector |
Fathom | Nitro Ground Shaker | Viking |
Fireball II | Paragon | Voltan |
Fireball Classic | Playboy | X's and O's |
Flash Gordon | Power Play | Xenon |
Works in the Following Stern Games:
Ali | Iron Maiden | Pinball |
Big Game | Lazer Lord | Quicksilver |
Catacomb | Lectrnamo | Seawitch |
Cheetah | Lightning | Split Second |
Cosmic Princess | Magic | Star Gazer |
Dracula | Memory Lane | Stars |
Dragonfist | Meteor | Stingray |
Flight 2000 | Nine Ball | Trident |
Freefall | Nugent | Viper |
Galaxy | Orbitor 1 | Wild Fyre |
Hot Hand |
Works in the Following Other Games:
Black Sheep Squadron | New Vector | Sexy Girl |
New Fathom |
Auxiliary LED/Lamp Driver Board for AS-2518-52
Works in the following games:
Eight Ball Deluxe | Fireball II | Space Invaders |
Eight Ball Deluxe Ltd | Flash Gordon | Speakeasy 2 & 4 Player |
Elektra | Medusa | Vector |
Embryon | Mr. and Mrs. Pacman | Xenon |
Fathom |
Auxiliary LED/Lamp Driver Board for AS-2518-43
Works in the following games:
Black Pyramid | Future Spa | Spy Hunter |
Centaur | Kings of Steel | X's and O's |
Centaur II | Kiss |
Power Supply/Voltage Rectifier Board
Works in the Following Bally Games:
Black Jack | Hotdoggin | Rolling Stone |
Black Pyramid | Kiss | Silver Ball Mania |
Dolly Parton | Lost World | Six Million Dollar Man |
Eight Ball | Mata Hari | Skate Ball |
Evil Knievel | Mystic | Space Invaders |
Freedom | Night Rider | Star Trek |
Frontier | Nitro Ground Shaker | Strikes and Spares |
Future Spa | Paragon | Super Sonic |
Harlem Globe Trotters | Playboy | Viking |
Power Play | Voltan Escapes |
Works in the Following Stern Games:
Ali | Hot Hand | Pinball |
Big Game | Iron Maiden | Quicksilver |
Catacomb | Lazer Lord | Seawitch |
Cheetah | Lectrnamo | Split Second |
Cosmic Princess | Lightning | Star Gazer |
Cue | Magic | Stars |
Dracula | Memory Lane | Stingray |
Dragonfist | Meteor | Trident |
Flight 2000 | Nine Ball | Viper |
Freefall | Nugent | Wild Fyre |
Galaxy | Orbitor 1 |
PART NUMBERS FOR DIRECT REPLACEMENT
Ultimate MPU Board
The part numbers compatible with the Ultimate MPU Board are listed here. Please understand there may be more that aren't listed, so if you have any questions feel free to ask. This is our up-to-date compiled list. Also, if you see the name of the game on the MPU Board product page list, it will work.
AS-2518-17 | AS-2518-35 | AS-2518-133 |
MPU-100 | MPU-200 | AS-3241-1 |
AS-3241-2 | A084-91638-AB42 | A084-19494-A371 |
A084-19494-A000 | A084-91624-AA17 | A084-91624-A000 |
A084-91624-A391 | A084-91624-AA44 | A084-91624-A390 |
A084-91638-AA40 | A084-91494-A369 | AS-2887-1 |
AS-2887-2 | AS-2887-3 | AS-2887-4 |
AS-2887-5 | AS-2887-6 | AS-2887-7 |
AS-2887-8 | AS-2887-9 | AS-2962-1 |
AS-2962-2 | AS-2962-3 | AS-2962-4 |
AS-2962-5 | AS-2962-6 | AS-2962-7 |
AS-2962-8 | AS-2962-9 | AS-2962-10 |
AS-2962-11 | AS-2962-12 | AS-2962-13 |
AS-2962-14 | AS-2962-15 | AS-2962-16 |
AS-2962-17 | AS-2962-18 | AS-2962-19 |
AS-2962-20 | AS-2962-21 | AS-2962-22 |
AS-2962-23 | AS-2962-24 | AS-2962-25 |
AS-2962-26 | AS-2962-27 | AS-2962-28 |
AS-2962-29 | AS-2962-30 | AS-2962-31 |
AS-2962-32 | AS-2962-33 | AS-2962-34 |
AS-2962-35 | AS-2962-36 | AS-2962-37 |
AS-2962-38 |
Ultimate Solenoid Board
Direct replacement for Bally® AS2518-16, AS2518-22, AS2518-25, A084-91612-0000 and Stern® SDU-100.
Ultimate LED/Lamp Board
Direct replacement for Bally® AS-2518-14, AS-2518-23, A084-91612-A000 and Stern® LDB-100.
